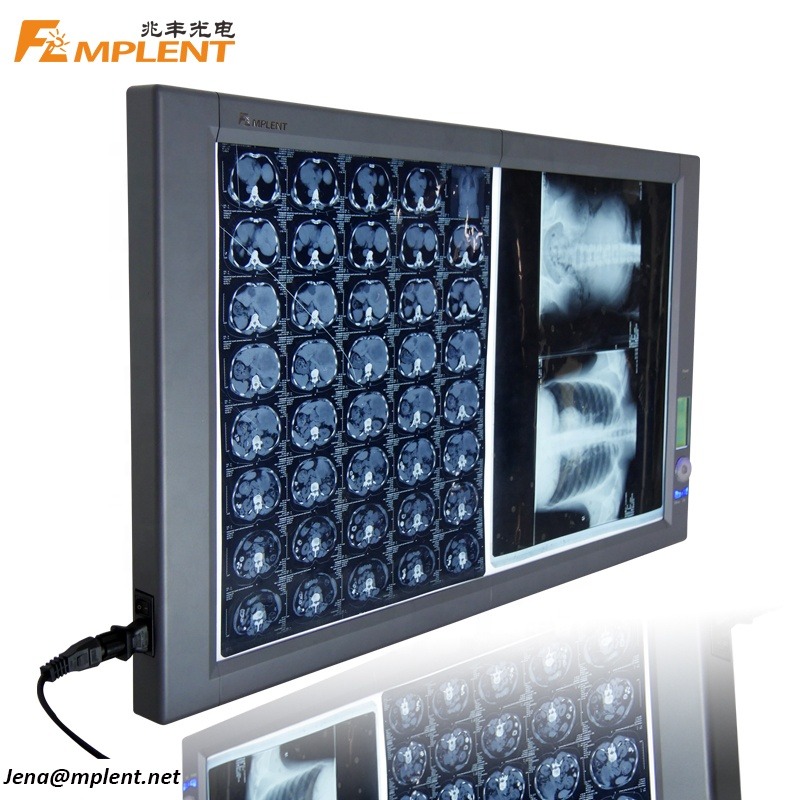

Super Bright Double Digital Medical Negatoscope LED X Ray Viewer
Mplent x-ray medical panel film negatoscope viewer |
||||
ZG Series |
Single (ZG-1) |
Double (ZG-2) |
Triple (ZG-3) |
Quadruple (ZG-4) |
Size(L×W×H mm) |
480×502×33 |
840×502×33 |
1200×502×33 |
15600×502×33 |
Visual Area(L×W mm) |
360×422 |
720×422 |
1080×422 |
1440×422 |
Power(W) |
30W |
60W |
90W |
120W |
LED Specification&Lifespan |
Super Bright SMD LED, 780pcs/bank; CCT ≥ 8000K;Lifespan ≥ 100000 hours |
|||
Adaptor |
Global Adaptive Power;AC90V-240V ,50/60Hz |
|||
View Panel Luminance |
PWM Dimming System,can be modulated range from 1% to 100% continuously,Average Luminance :0~6000cd/ m2 |
|||
Sensor function |
The panel will light up automatically when film inserted and off when moved away |
|||
Uniformity |
≥90% |
|||
Fixture |
SS roller oblique compression type Fixture |
|||
Installation |
Wall mounting, Bracket mounting |
|||
Application Scope |
General Film,Digital Film,Breast Mammography Film |
|||
Application Condition |
Room Average Illuminance ≤ 100 lux |
|||
Features |
|
Hunan Mplent Optoelectronics Technology Co., LTD is a professional high-end oriented LED illumination device Manufacturer. Our main products are high performance LED surgical lights, LED medical film viewer and LED eye visual test chart ect.. Completely complied with national medical device registration standard, all the products are CE, ISO9001:2008 certificated and have got national utility model patent, appearance patent and software copyright.
